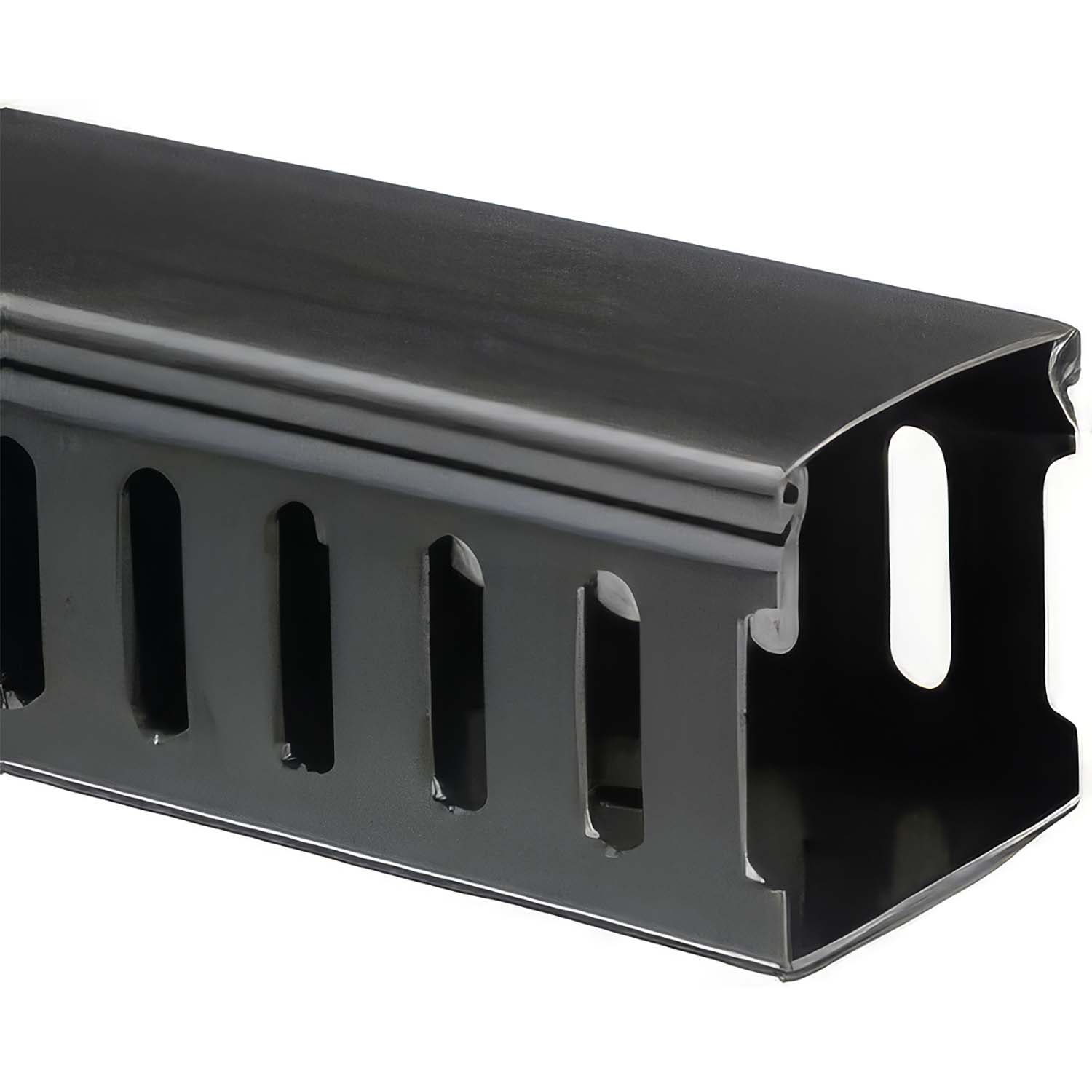

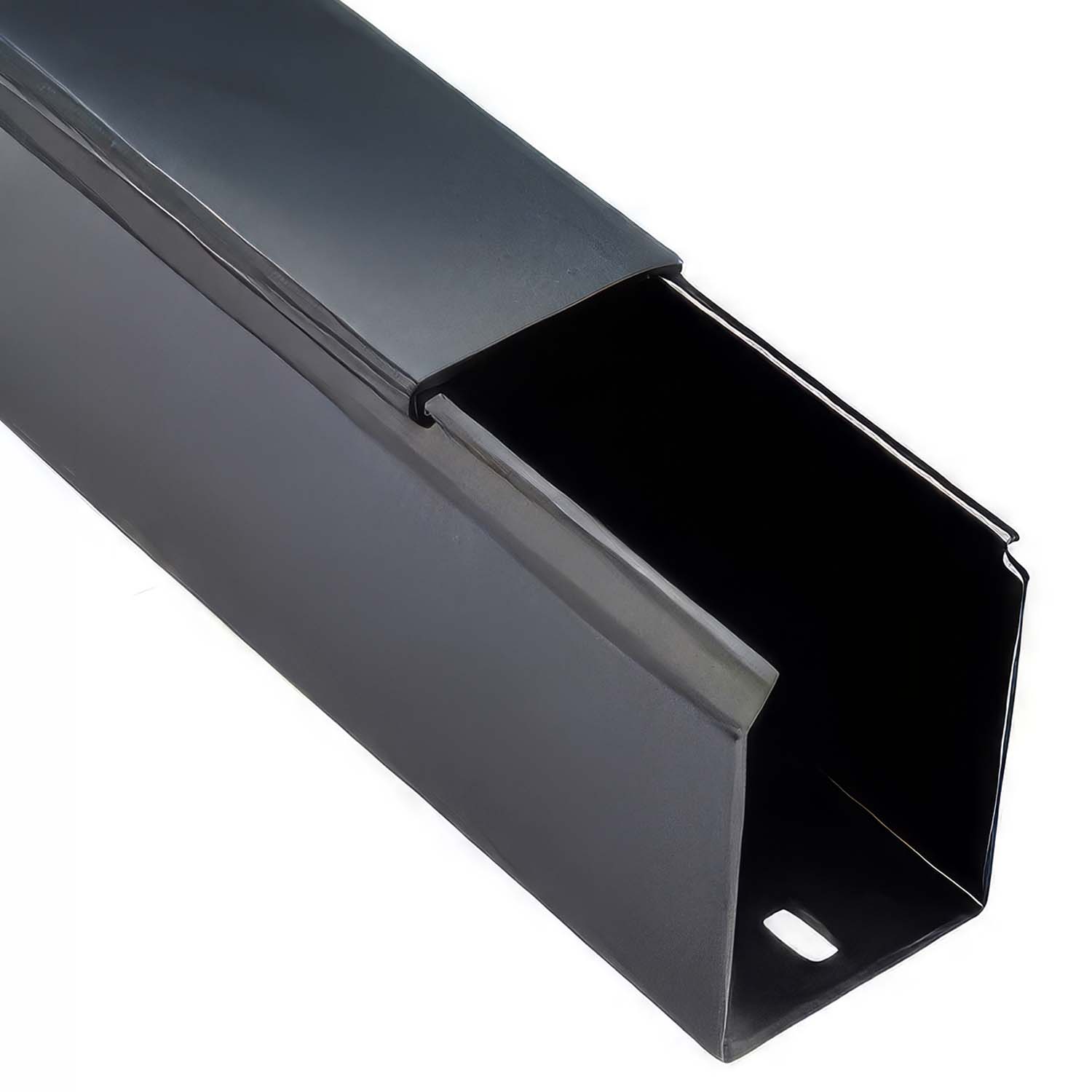

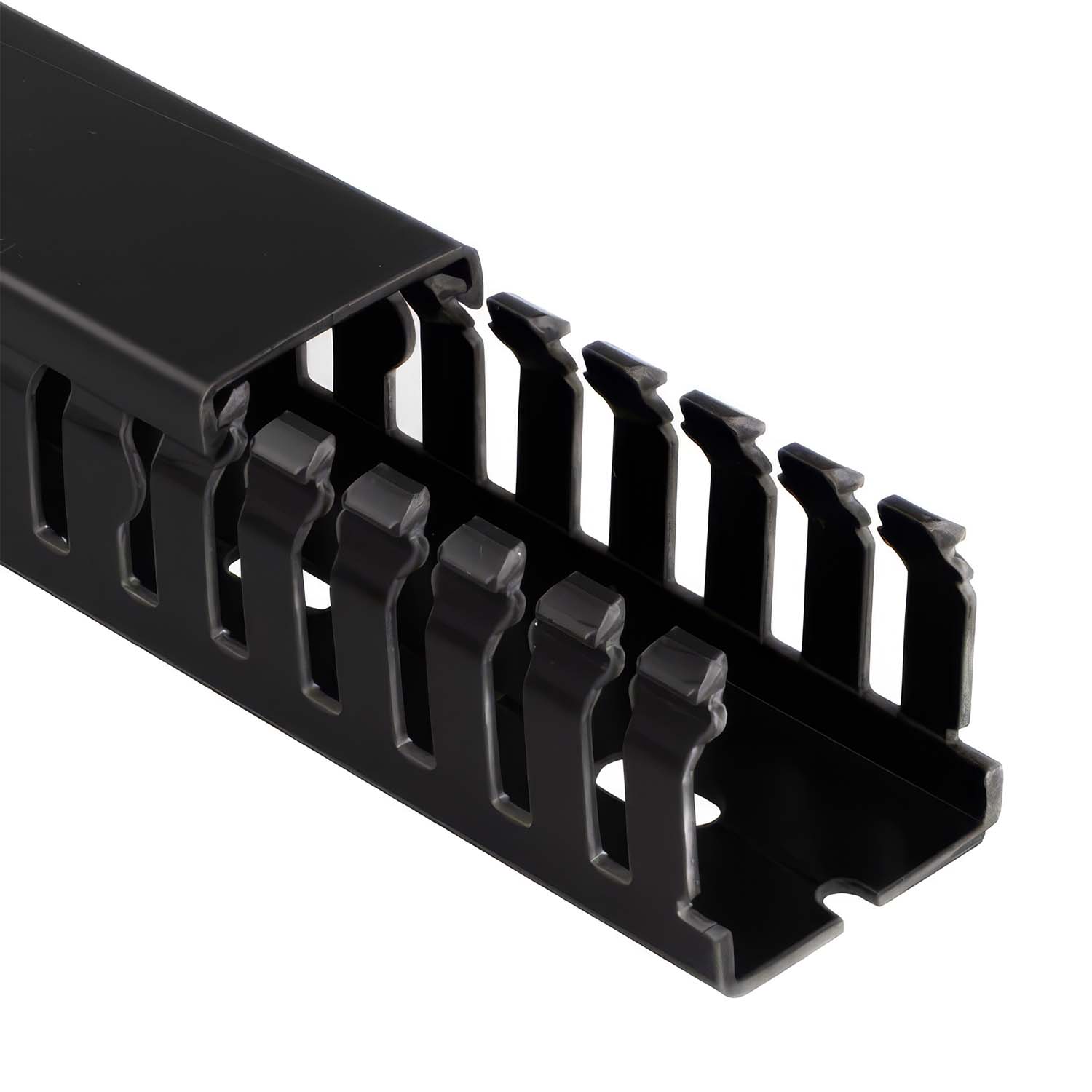

Betaduct Noryl Wire Duct

Material			Rigid PVC	Polypropylene	Polyamide 6	Poolyethylene	Flame Retardant Polyethylene
Technical Characteristics	Test Standard	Unit of Measure
Chemical- Physical Properties
Specific gravity	DIN 53479	g/cm³	1.55	1.01	1.14	0.92	0.97
Formaldehyde	-	ppm	absent	absent	-	absent	absent
Cadmium	-	ppm	absent	absent	-	£10	£10
Mechanical Properties
Tensile stress at break	DIN 53455	MPa	39	28	45	17	15
Elongation at break	DIN 53455	%	130	200	250	400	600
Modulus of elasticity	DIN 53457	MPa	3200	1700	1100	340	1400
Thermal Properties
Temperature VICAT	DIN 53460	°C	84	95	198	90	95
HDT	ISO 75R	°C	73	60	68	40	50
Continuous Operation Temp	-	°C	65	100	70	70	85
Electrical Properties
Dielectric constant	DIN 53483	-	3.4	2.5	5.0	2.5	2.3
Dielectric strength	DIN 53481	kV/mm	35	25	30	14	14
Surface resistance	IEC 93	Ohm	1013	1013	1012	1013	1012
Self-Extinguishing
Self-Extinguishing UL 94 3.2 mil.	UL 94	-	V-0	V-0	V-2	HB	V-1
Self-Extinguishing UL 94 1.6 mil.	UL 94	-	V-0	V-0	-	HB	V-2
Hot Wire Test (2mm)	CEI 50-11	°C	960	960	650	650	850
CSTB Classification	CSTB	-	M1	-	-	-	M3
Oxygen Number	ASTM D 2863	%	43	30	25	17.5	25

Note: The information given herein is believed to be reliable. Electriduct.com and/or the manufacturer of this product make no warranties as to their accuracy or completeness and disclaim any liability in connection with its use. Electriduct.com and the manufacturer's only obligations are those in the standard terms of sales of this product and will not be liable for any consequential or other damages and losses arising out of the use or misuse of this product. Users should make their own evaluation to determine the suitability of the product for specific applications.
